Temperature Regulation and Control

Connection Box with Electronic Thermostat – CMECT/W

The CMECT/W is a compact and robust connection box integrating an electronic ambient-sensing thermostat, specifically designed for non-hazardous environments. Made of high-strength polycarbonate (gray base and transparent cover), it ensures excellent mechanical resistance (IK10) and optimal sealing (IP67), making it perfectly suitable for both indoor and outdoor installations, even under harsh ambient conditions.

This device allows the direct connection of a power cable and up to three electric tracing cables, thereby reducing the need for additional control wiring thanks to the integrated thermostat. It also offers enhanced responsiveness in temperature management while optimizing installation costs.

Datasheet - CMECT/W

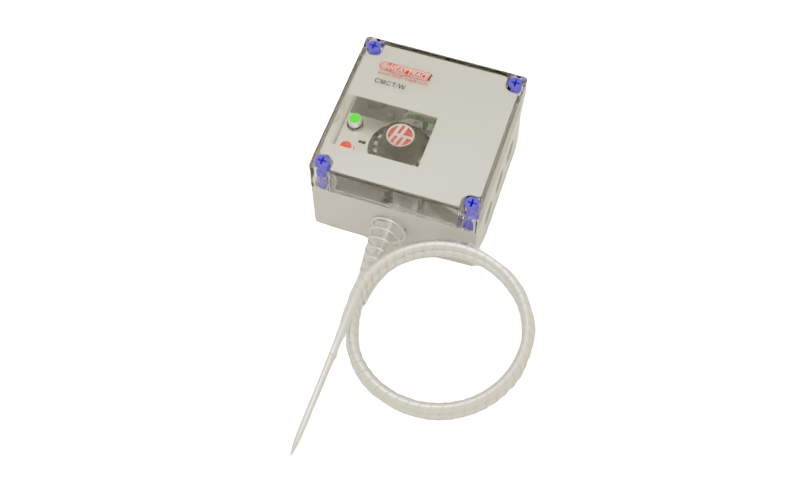

Junction Box with Thermostat, Indicator Lights, and Clip-On Terminals (CMCT/W)

The junction box with thermostat (CMCT/W) is designed for non-hazardous areas and made of polycarbonate, allowing installation even in harsh ambient conditions.

It provides direct termination for up to three thermal tracing cables and one power cable (max. 20 A), while offering local control through its integrated thermostat, reducing control cable lengths and improving responsiveness.

Compact and precise, it features clip-on terminals, manual adjustment, a single power input, indicator lights (red for power, green for heating), connections up to 4 mm², CE marking, and is supplied with two M20 plugs.

Datasheet CMCT/W

Junction Box with Thermostat, Without Indicator Lights, with Clip-On Terminals (CMCT)

The commercial junction box with thermostat without indicator lights (CMCT) is designed for non-hazardous areas and made of polycarbonate, providing reliable installation even in harsh ambient conditions.

It allows direct termination of up to three thermal tracing cables and one power cable (maximum load of 20 A), with local control via an integrated thermostat, reducing control wiring and improving responsiveness.

Compact and precise, it features manual adjustment, clip-on terminals, connections up to 4 mm², a single power input, and is CE marked. It is supplied with two M20 plugs.

Datasheet CMCT

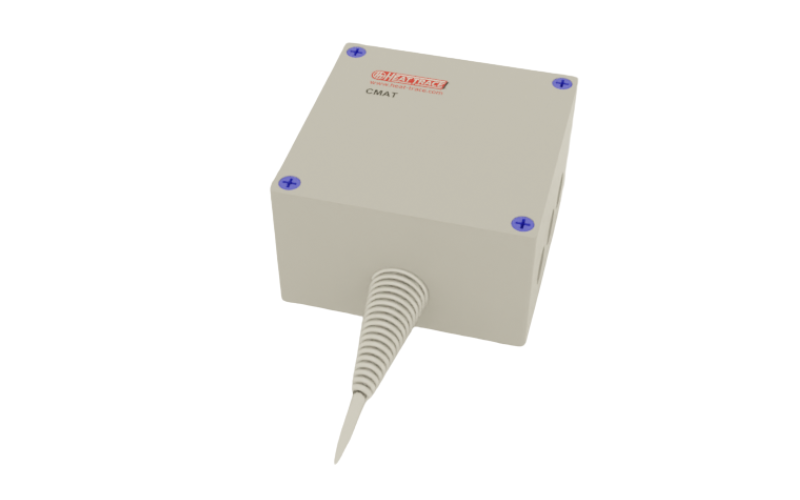

Commercial Ambient Sensing Thermostat (CMAT)

The commercial ambient sensing thermostat (CMAT) is designed for non-hazardous areas. Made of polycarbonate, it can be installed even in harsh ambient conditions.

This enclosure allows direct inline termination of two thermal tracing cables and one power cable, with a maximum load of 20 A. Local control via the integrated thermostat reduces control cable lengths and improves response time.

Compact and precise, it features manual adjustment, spring-loaded (cage clamp) terminals, and supports control cables up to 4 mm². The product is CE marked.

Datasheet CMAT
